Rotary ElectricalTransmission Systems
Reliable power transmission in motion is not just a technical achievement – it's the cornerstone of modern aerospace and defense capabilities

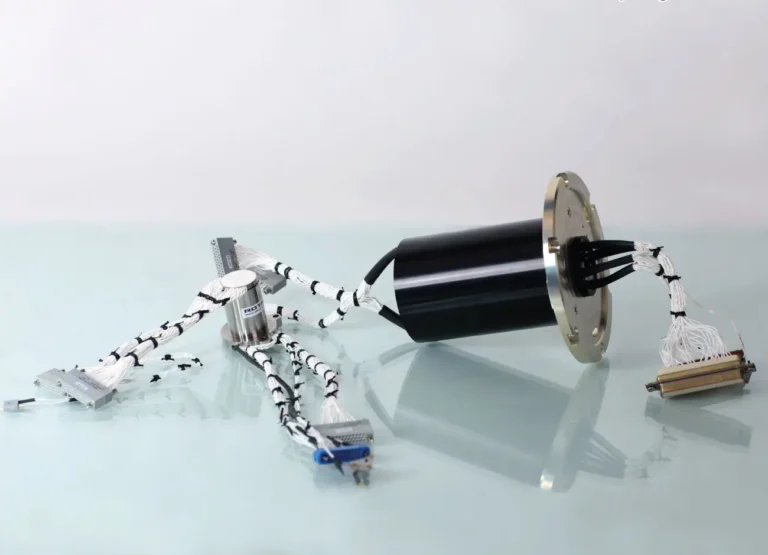

At Inventechs, we specialize in advanced rotary electrical transmission systems, commonly known as slip rings, that serve as critical components in modern aerospace and defense applications. With decades of expertise in this field, we deliver both standard and custom-engineered slip rings solutions that meet the rigorous demands of military and aerospace specifications besides other general applications.
Our solutions enable the seamless transfer of power and signals across rotating interfaces, a capability essential for various mission-critical applications including radar systems, satellite communications, guided missiles, and military aircraft. By maintaining continuous electrical contact while allowing unrestricted rotational movement, these systems ensure reliable operation in the most demanding environments.
Drawing on our extensive experience, we offer:
- Standard slip ring configurations for common applications
- Expert consultation throughout the design and implementation process
- Custom-designed solutions tailored to specific operational requirements
- Military-grade (MIL-spec) slip rings engineered for aerospace and defense applications

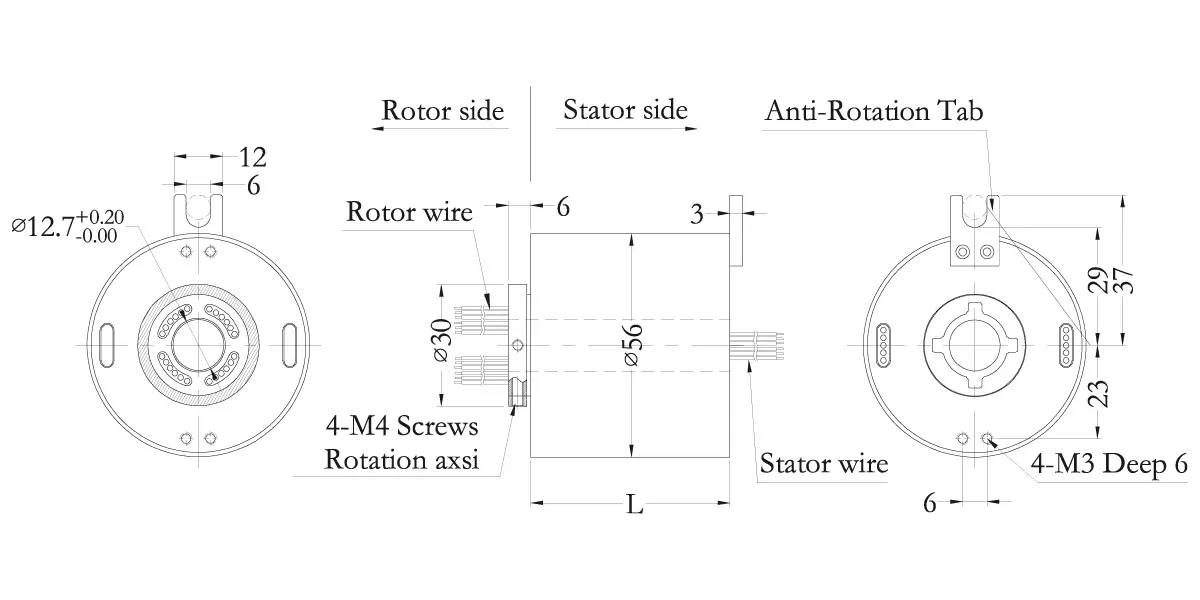

- Comprehensive engineering services, including detailed technical drawings and specifications
Whether you need a standard slip ring assembly or a completely customized solution, our engineering team works closely with clients to develop systems that precisely match their physical constraints and technical specifications that keep your mission-critical systems operating with optimal reliability and performance.
MarineSlip Rings
Maritime and offshore environments present the most demanding challenges for slip ring applications. These systems must withstand harsh oceanic conditions, including saltwater exposure, high humidity, and constant motion, while maintaining reliable electrical transmission at operational speeds.
Slip rings are crucial in various marine vessels, from Coast Guard cutters and icebreakers to luxury cruise ships. They enable essential shipboard operations through applications such as:
- Coil tubing systems for subsea operations
- Heavy-duty marine winches
- Wireline equipment for offshore drilling
- Ship-mounted cranes and hoisting systems
Each maritime application requires specialized slip ring designs that incorporate robust sealing, corrosion-resistant materials, and enhanced protection against environmental factors to ensure consistent performance and longevity in these challenging conditions.
Slip RingsApplications
The slip rings advanced features enable reliable electrical power and signal transmission between stationary and rotating components, are considered essential critical components in aerospace and defense industries
1. Marine Crane
2. Inertial Navigation
3. Simulation Turntable
4. Vehicle Rotating Turret
5. Launch Pad Systems
6. Aircraft Infrared Lidar
7. MIL Testing Equipment
8. Gimbal Photoelectric pod
9. Weather Radar
10. Marine Radar Antenna
11. Aircraft Radar Antenna
12. Vehicle-Mounted Radar Antenna
EthernetSlip Ring
Modern slip rings excel at the simultaneous transmission of both high-frequency signals and electrical power through a single integrated system. Their versatile design allows for optional integration with heat extraction systems for enhanced thermal management.
These precision-engineered devices are optimized for minimal electrical noise and signal interference, making them ideal for high-conductivity applications requiring reliable transmission of substantial power loads. Their robust construction delivers exceptional longevity with maintenance-free operation, eliminating the need for regular lubrication.
A key advantage of these systems is their ability to transmit multiple signal types, including:
- Database protocols
- Digital signals
- Analog signals
The most significant feature is their capacity for continuous 360-degree rotation while maintaining consistent data and power transmission integrity. This unlimited rotational capability enables reliable performance in applications requiring continuous or intermittent rotary motion.
ProductPortfolio
Rotary Electrical Transmission Systems
Capsule Slip Rings
Through-Bore Slip Rings
Pancake Slip Rings
Separate Slip Rings
Pin Slip Rings
Mercury Slip Rings
Ethernet Slip Rings
HD-SDI Slip Rings
Coaxial Slip Rings
Fiber Optic Slip Rings
Looking for aSolution?
Our Technical Experts are Here to Bring your VISION to Life. Let’s DISCUSS How Our SOLUTIONSÂ Can Maximize the VALUE of your PROJECT
